Switch-Pros 9100

$

$

549.00

Clean up your wiring with a Switch-Pros 9100 !!

Sold Out

No items found.
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

Addons 1

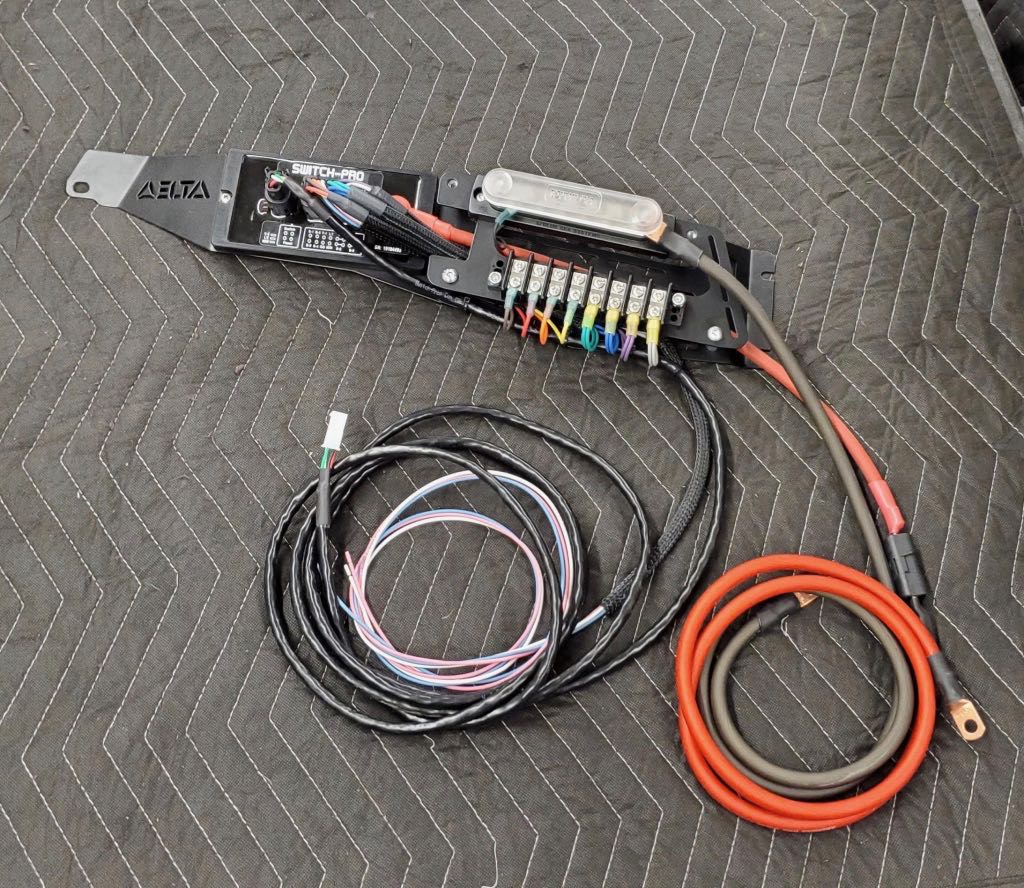

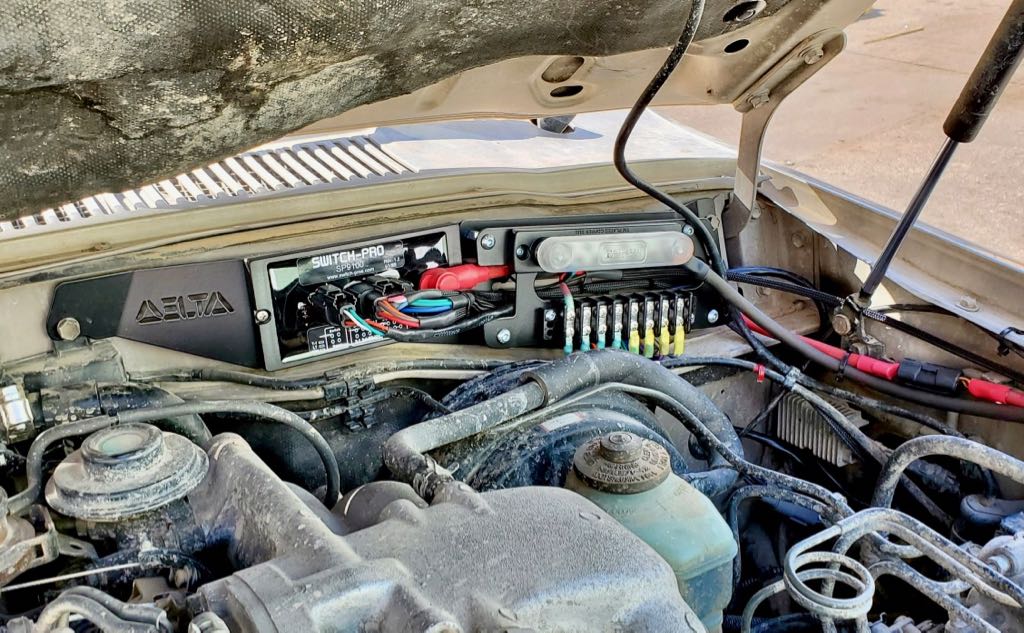

Switch-Pros 9100 80 Series engine bay mount
229
11971
9
Free Shipping
None
0
None
1
Non Shippable

Addons 2

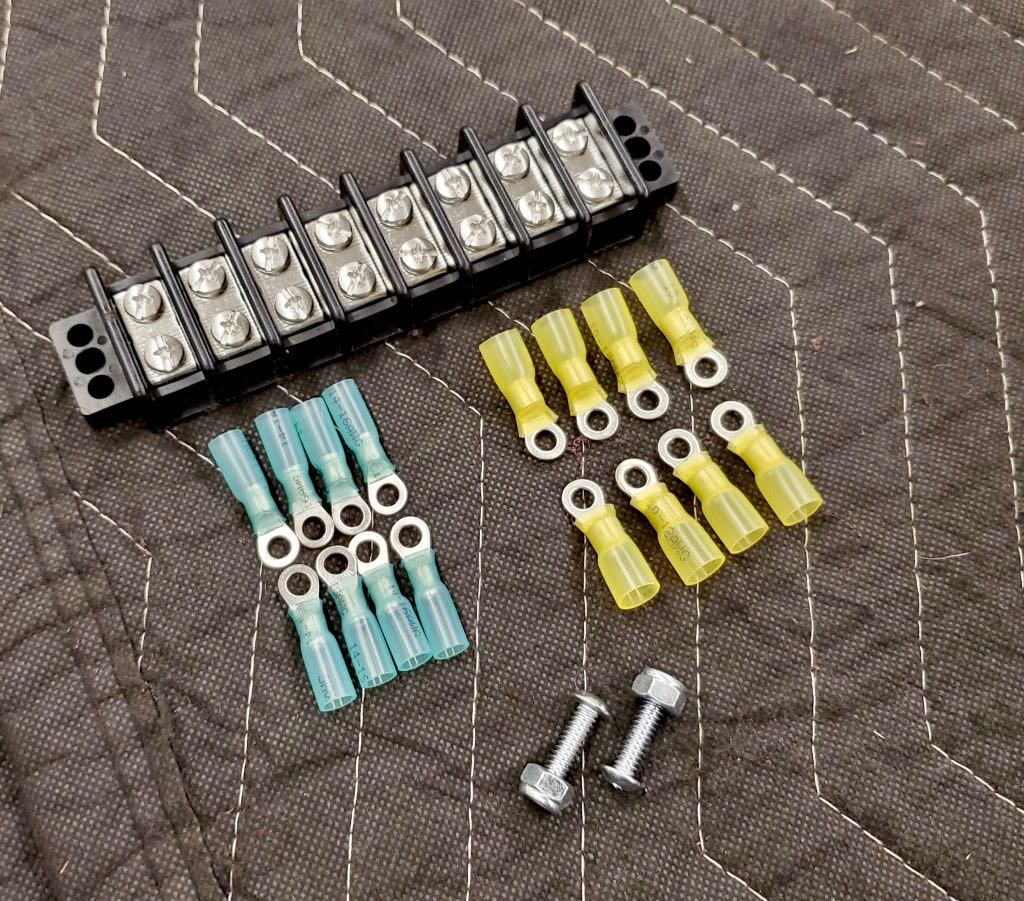

Include Screw terminal block kit BUNDLE
40
11984
9
Free Shipping
None
0
None
1
Non Shippable

Addons 3

No items found.

Addons 4

No items found.

Features

Read details of our mount kit here

Features:

• Eight user-programmable switches
• Four 35A circuits and four 18A circuits, with over-current and short circuit protection• Waterproof, Solid State 125A Power Module
• RGB Backlighting provides unlimited color options, using Color Picker on App
• Daisy Chain up to 3 Switch Panels to One Power Module

Switches can be programmed for:

- On/Off or Momentary
- Ignition or Battery Input
- Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation- Memory Function
- Master Mode, with ability to turn multiple outputs On AND Off with one touch- Automatic Power-Up upon vehicle start up

• Two External trigger inputs can each activate up to four outputs (Active Hi or Active Low)
• Lighting outputs can dim from 100% to 10%, with ability to dim during Flash or Strobe patterns
• Sleep Mode for minimal power consumption
• Color Coded Output wires
• 100 User-selectable switch legends
• LED Input Status Indicators for easy troubleshooting
• Time Delay Off function available for all circuits
• Splash proof switch panel with Polycarbonate overlay faceplate
• Program and control the system from switch panel pad or smart phone
• Bluetooth interface with FREE Apple or Android App
• Battery Voltage Readout on App screen
• No Fuses or Bulky Relay box
• Built-In Bluetooth Module


Switch Panel Specs:
• RGB Backlighting provides unlimited color options, allows for exact matching to factory dash lighting• Built-In Bezel Style Switch Panel enclosure measures 4”L x 2”W x .375”H ; includes concealed mounting hardware for factory-look installation• Orange LED switch indicators
• 100 User-Selectable Legends

Power Module Specs:

• 8 Outputs: 4 rated @ 35A, 4 rated @ 18A
• 125A maximum rating
• Waterproof and Solid State
• 6”L x 3”W x .5”H (excluding connectors)
• LED Input Status Indicators for easy troubleshooting• Underhood rated 125°C to -40°C

Kit also Includes:

• 11’of Communication Cable between Switch Panel andPower Module

• Color Coded Output wires
• Wire harness with Waterproof, sealed automotive grade connectors
• Power Cable with 125A inline fuse
