CONTINENTAL US SHIPPING OF WHEELS INCLUDED IN PRICE, CONTACT FOR OTHER LOCATIONS

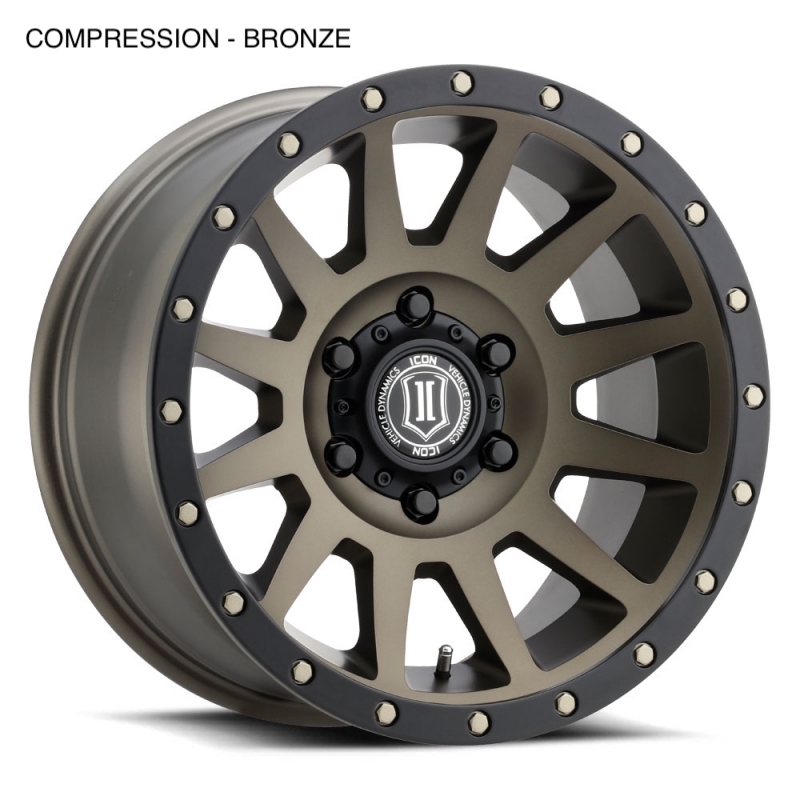

Rebound and Compression Wheels:

Bring a bold new look to your ride with theses wheels! Combining sharp lines, a concave spoke design, and "ICON-optimized" dimensions, these wheels will increase both the form and function of your 80/100. Staying true to the ICON Alloys approach, these have been engineered to maximize caliper clearance and optimize wheel position for un-hindered suspension travel and steering function. Backspace dimensions and wheel offset have been strategically developed to reduce scrub radius, improving all-around handling and ride quality and making a set of these wheels the perfect complement to an ICON Vehicle Dynamics suspension system.

Rebound PRO Wheels:

Any hardcore off-road enthusiast knows the numerous benefits that lower tire pressures offer such as improved ride quality and a larger contact patch for increased traction. However, low pressures also increase the risk of de-beading the tire during extreme side loads or aggressive driving. While traditional beadlock wheels address this issue by clamping the tire’s bead, they also need frequent maintenance, require specialty tools/parts, increase rotational mass, and are NOT legal for on-road use.

The ICON Alloys Rebound PRO with patented INNERLOCK TECHNOLOGYoffers the best of both worlds by using a robust bead retention system to keep the tire bead secured to the wheel while also being fully DOT compliant. This provides confidence in knowing that your wheels are prepared to tackle whatever situation you encounter - on or off the beaten path. InnerLock is ready for any type of terrain and every single adventure.

During an accelerated R&D process ICON engineers subjected the Rebound PRO to thousands of miles of real-world abuse throughout harsh and unforgiving environments. After on-vehicle testing was concluded, the Rebound PRO was sent to an independent contractor for precise lab testing, specifically the FMVSS No.139 Tire Bead Unseat Resistance Test (modified to 10 psi). Results from multiple tests validated the effectiveness of ICON’s InnerLock technology by exceeding the mechanical limits of the machine (over 7600lbs load) without ever de-beading the tire.

Sizing:

The wheels listed as "80 Series" are 17x8.5 with a 0 offset (4.75" backspace) and have a 6x5.5 (or 139.7) bolt pattern

The wheels listed as "100 Series" are 17x8.5 with a +25mm offset (5.75" backspace) and have a 5x150 bolt pattern

We have run these sizings on many 80s and 100s with great success
