Baja Designs OnX6+ LED bars

Baja Designs OnX6+ LED bars

$

$

0.00

BRIGHT AF

Sold Out

Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

Addons 1

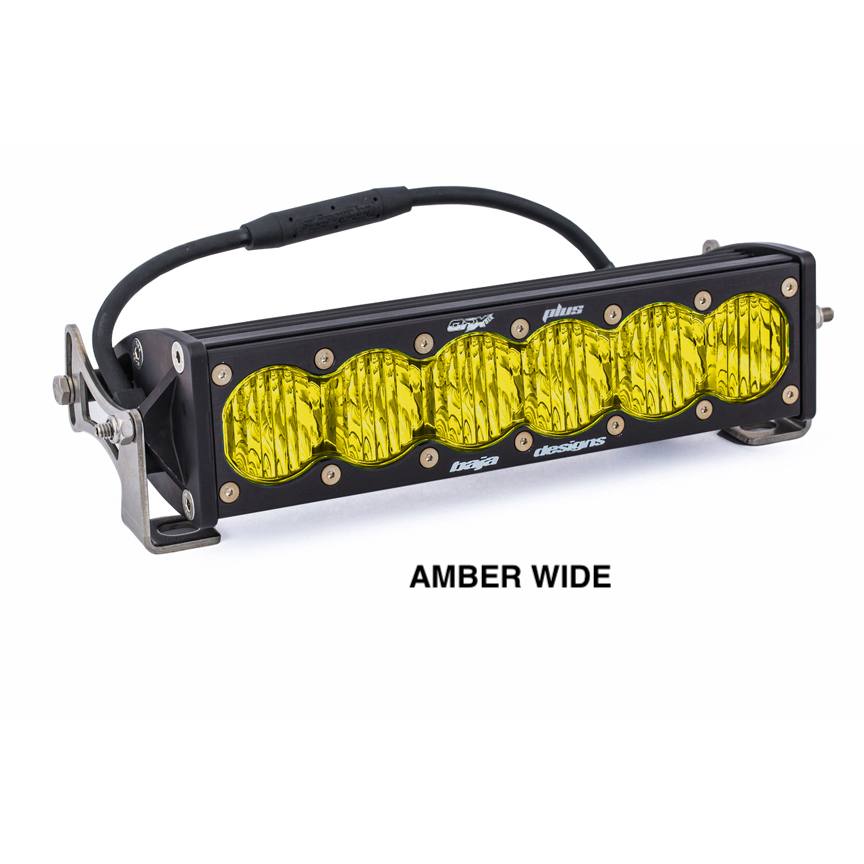

-Baja Designs OnX6+ LED bars - AMBER WIDE Lens
425
BD451013
1
Free Shipping
-Baja Designs OnX6+ LED bars - AMBER WIDE Lens
425
BD451014
1
Free Shipping
-Baja Designs OnX6+ LED bars - CLEAR SPOT Lens
425
BD451001
1
Free Shipping
-Baja Designs OnX6+ LED bars - CLEAR WIDE Lens
425
BD451004
1
Free Shipping
-Baja Designs OnX6+ LED bars - CLEAR DRIVING-COMBO Lens
425
BD451003
1
Free Shipping

Addons 2

No items found.

Addons 3

No items found.

Addons 4

-Baja Designs OnX6+ LED bars - WIRING HARNESS - 2 LIGHTS - HI-LOW
72.00
BD640119
Free Shipping
1

Features

At an impressive 12,460 lumens, the brightest just got up to 69% brighter than our previous generation.

The OnX6 + LED light bar also integrates Baja Designs’ trademarked High Speed Spot™ reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet.  In addition, the OnX6 + LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.

Specifications:
Lumens:  (High) 12,460 (Low) 9,230 Utilizing 6 LEDs
Wattage/Amps: (High) 108W / 8.4A (Low) 80W / 5.7A
Dimensions: 10" x 4.29" x 2.69"
Weight: 4.25 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

Light patterns available:

Driving/Combo: Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Driving:  BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2) (Also available in amber)

High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

Compatability

Additional Downloads
